Fence cargo semi trailer has the advantages of strong carrying capacity, high transportation efficiency, good cargo protection, and flexible use. It is widely used in logistics, transportation, construction and other fields.

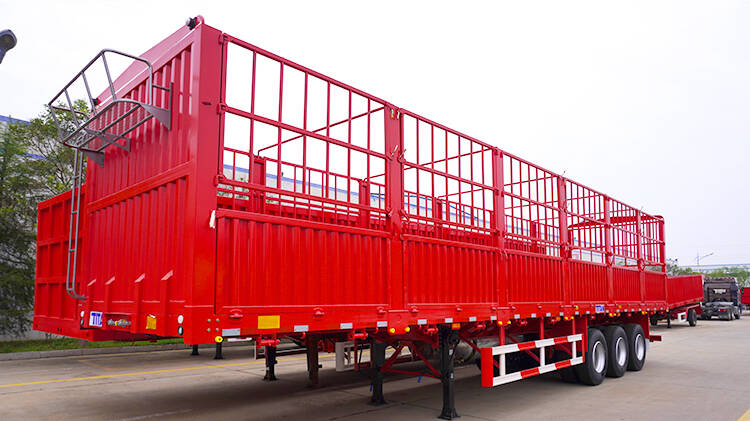

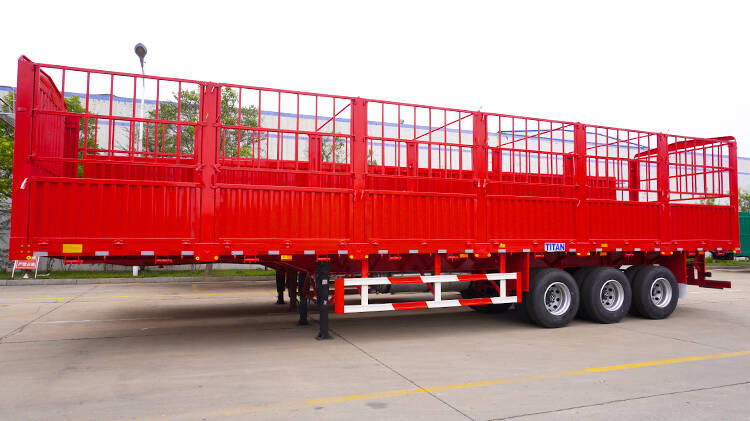

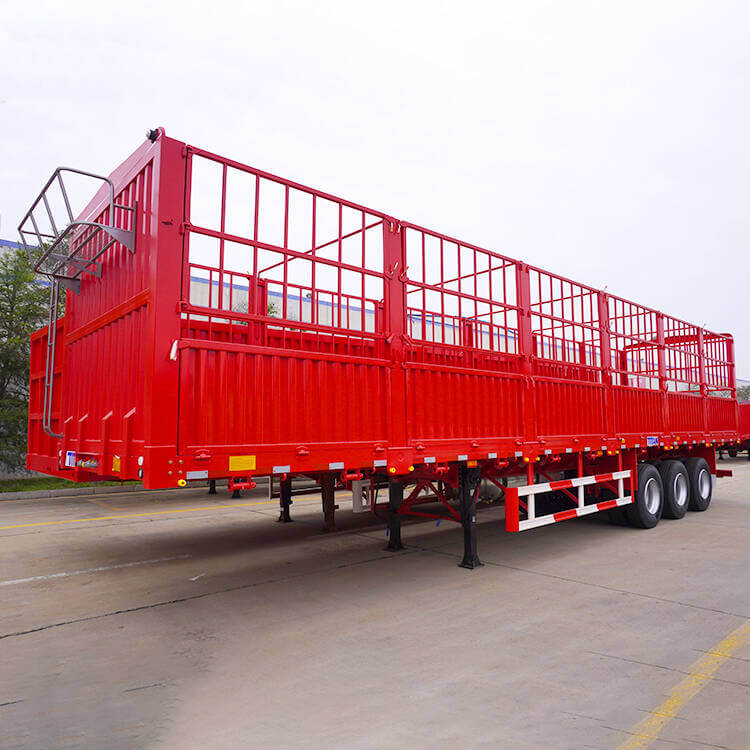

3 Axle Fence Cargo Semi Trailer for Sale Manufacture in Madagascar
3 Axle Fence Cargo Semi Trailer for Sale Manufacture in Madagascar
3 Axle Fence Cargo Semi Trailer for Sale Manufacture in Madagascar
1. Strong load capacity: fence cargo semi trailer has the characteristics of large capacity and high load capacity. Its body length, width, and height can be adjusted according to transportation needs to meet various needs.
2. High transportation efficiency: the fence cargo semi trailer adopts a multi-layer shelf design, which can store goods in the smallest space, thereby improving the cargo capacity and transportation efficiency.
3. Protect the goods: the fence cargo semi trailer adopts measures such as partitions and fixing devices, which can effectively prevent the goods from being damaged due to bumps and collisions.
4. Flexible use: The fence cargo semi trailer can be equipped with different types of trucks according to different transportation needs, such as flat trucks, high and low board trucks, etc., to meet various transportation needs.
Dimension(mm): 13000x2600x3420mm（depends on final design）
Trailer Sides: 1800mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,(FUWA/ BPW/ Huajing optional)

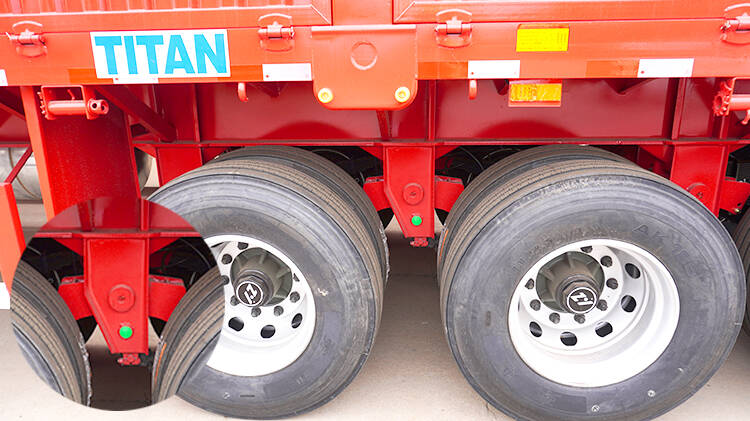

Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension(Air suspension optional)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

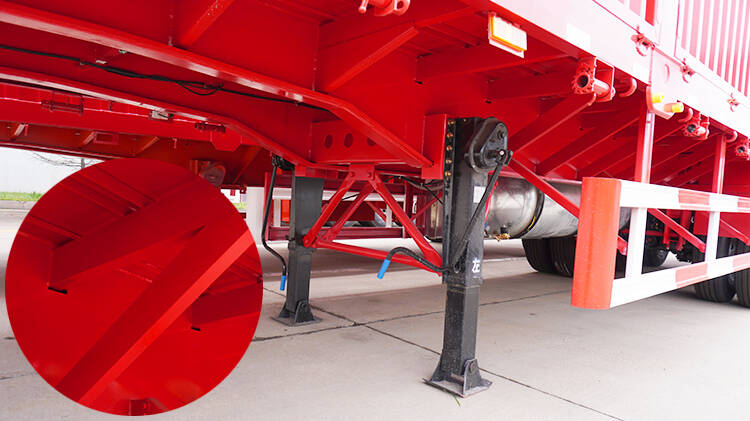

Landing Gear: JOST brand D200T or Standard 28tons(double-speed)
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve
Light: LED light
Voltage: 24V
