The CIMC skeleton trailer can transport one 40ft container or two 20ft containers. In addition to the advantages in terms of self-weight, this container skeleton vehicle has many highlights. CIMC skeleton trailer is excellent in design, welding, circuit layout and other details.

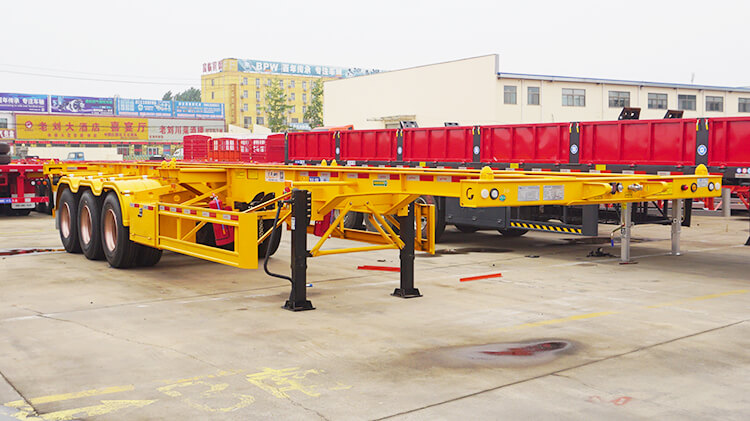

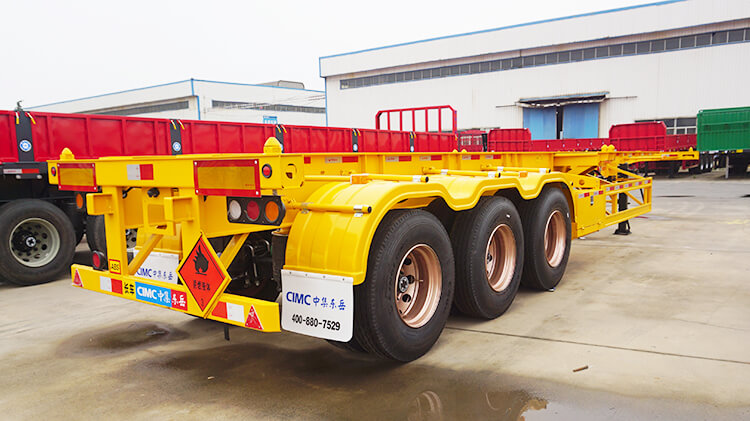

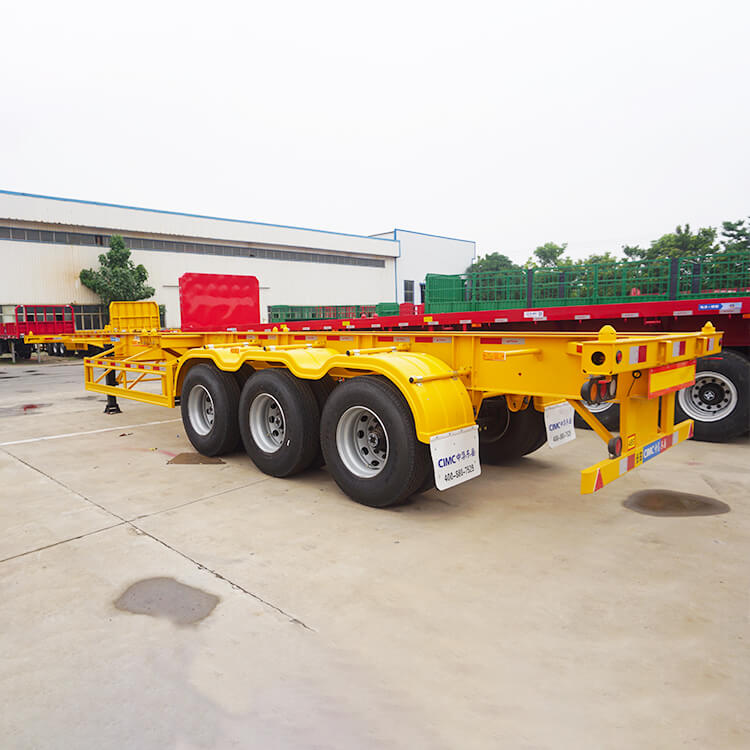

CIMC 3 Axle 40ft Skeleton Trailer for Sale in Madagascar
CIMC 3 Axle 40ft Skeleton Trailer for Sale in Madagascar
CIMC 3 Axle 40ft Skeleton Trailer for Sale in Madagascar
1. The CIMC skeleton trailer adopts the yellow paint that is more common on skeleton cars, which is very eye-catching. After multiple painting processes, it can last longer and protect the car body from corrosion.
2. The welding technology of CIMC skeleton trailer for sale can guarantee the strength and aesthetics of welding to the greatest extent, and improve production efficiency. The welding is smooth and even, and there will be no unevenness of the weld seam.
3. The web of the girder adopts multiple reinforcement bars to increase the strength of the girder, and there are gaps at both ends of the reinforcement ribs, which can release the pressure of the 40ft skeleton trailer carrying cargo.
4. The outriggers of CIMC 3 axle skeleton trailer have a large bearing capacity, and the outriggers of the trailer suspension also have reinforcing ribs to enhance the strength of the suspension beams.
Dimension(mm): 12360x2500x1520mm（Depends on final design）
Axles: 3 axles, 13T/16T , FUWA/ BPW

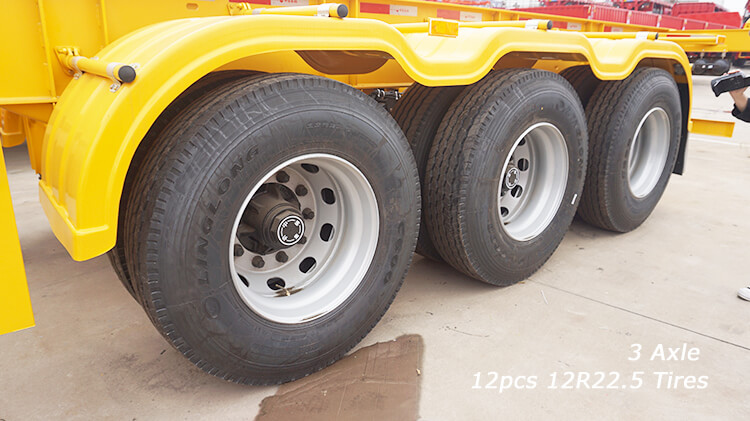

Tire: 12 units, 12.00R22.5 or 315/80R22.5
Color: Optional
Suspension: Mechanical suspension
King Pin: JOST brand 2.0 or 3.5 inches (bolted or welded)
Landing Gear: JOST brand D200T

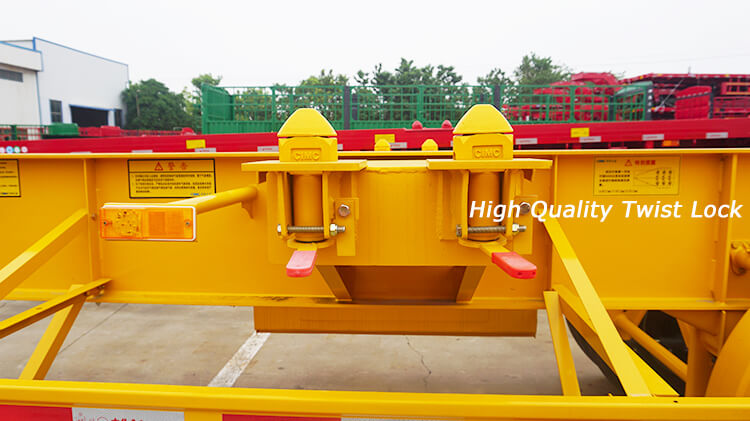

Twist Locks: 4,8,12 sets (lifting or screw type)
If you are interested in this 3 axle 40ft CIMC skeleton trailer for sale, welcome to leave your message!
We will provide more details, quotation, catalog, drawing, videos for you!
