This Side Loader Truck adopts a new structure, high reliability, automatic operation, fast transportation speed, and high operating efficiency. When operating, the body is parallel to the stacking position of the container, and the passage occupied is only 1/3 of that of the reach crane. , small port terminals, container transfer stations and other sites have a particularly high utilization rate.

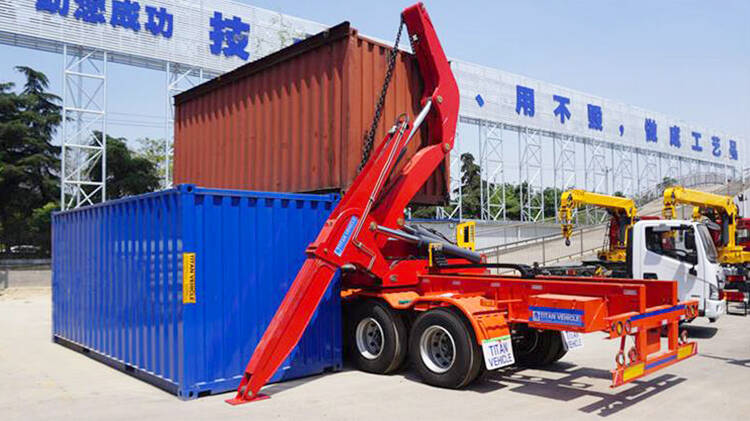

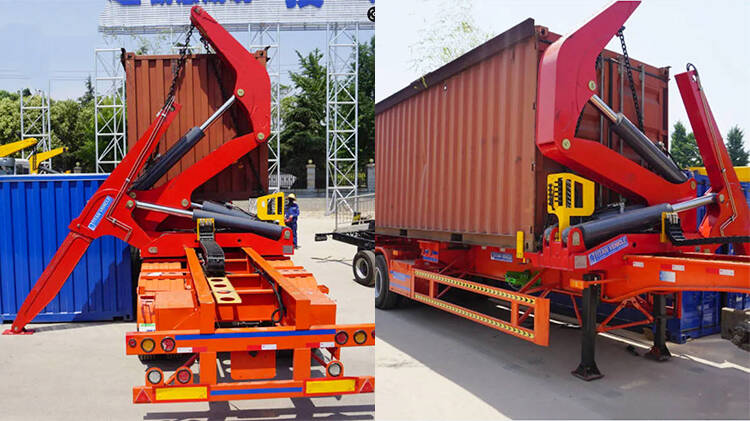

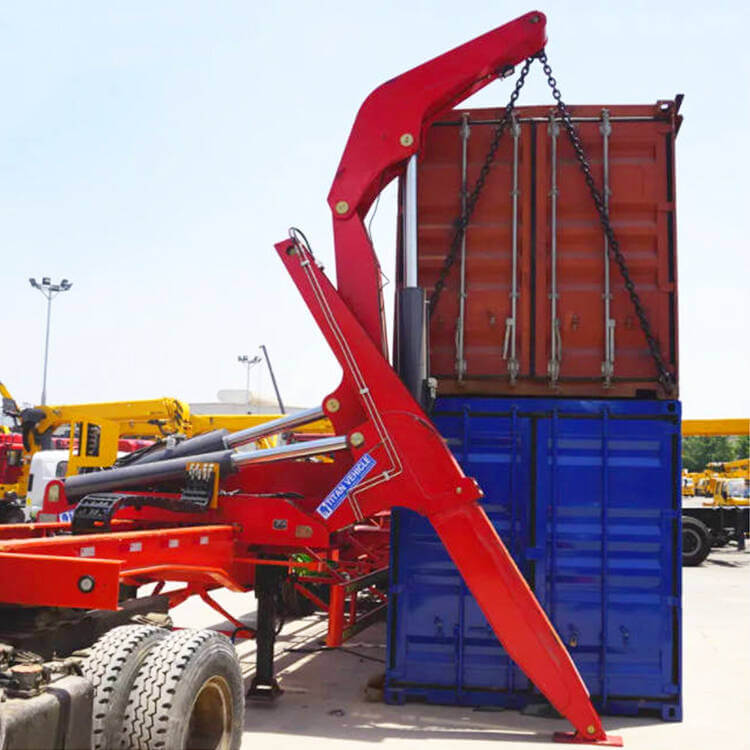

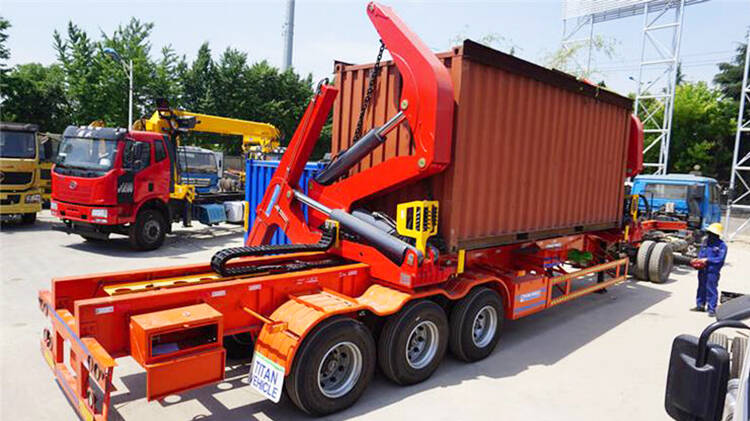

40 Ft Side Loader Truck Trailer for Sale in Madagascar
40 Ft Side Loader Truck Trailer for Sale in Madagascar
1. Side Loader Truck uses dual hydraulic pressure, which greatly improves the safety of use.
2. If the supporting feet of the Side Loader Truck are not folded, it will automatically stop to continue lifting.
3. The supporting legs are long, which can effectively prevent rolling and tilting
4. Side Loader Truck always has four support points when stacking, so as to safely lift containers or other heavy objects;
Max. lifting capacity: 40Ton
Max.pressure of hydraulic system: 28Mpa
Dimension(L*W*H): 14100*2500*4200mm/7500*2500*4200mm
Axle: 3 axle* 13 ton (220mm brake pads)
Tire: 12pcs, 12R22.5
Suspension: Heavy duty type mechanical spring suspension
KingPin: 3.5 inch bolted type
Braking system: WABCO Emergency valve
Landing gear: JOST
Tow Chain: lgus (imported)
Power source: Power take-off (equipped)
Hydraulic pump: Gear type Casappa Italy
Direction control valves: AMCA Holand
Remote Control: NBB Germany
