A dump truck is a kind of truck with an automatic dumping device in the loading part. It is composed of automobile chassis, hydraulic lifting mechanism, cargo compartment and power take-off device and other components.
It is more common for the compartment of the dump truck to tip backwards, and the piston rod is pushed to tip the compartment.
In civil engineering, dump trucks are often combined with construction machinery such as excavators, loaders, and belt conveyors to form a loading, transporting, and unloading production line for loading and unloading of earthwork, sand, and bulk materials.

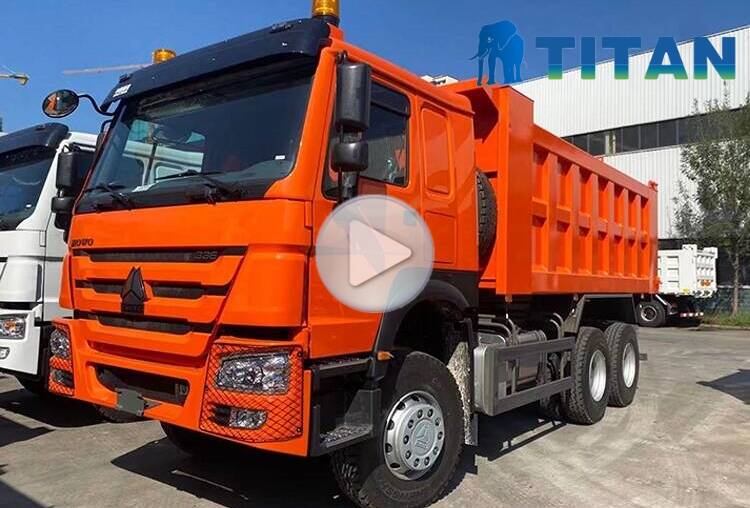

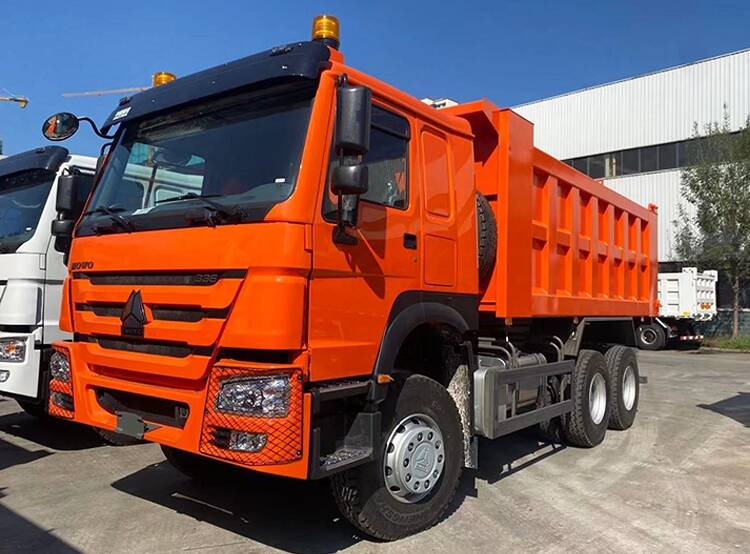

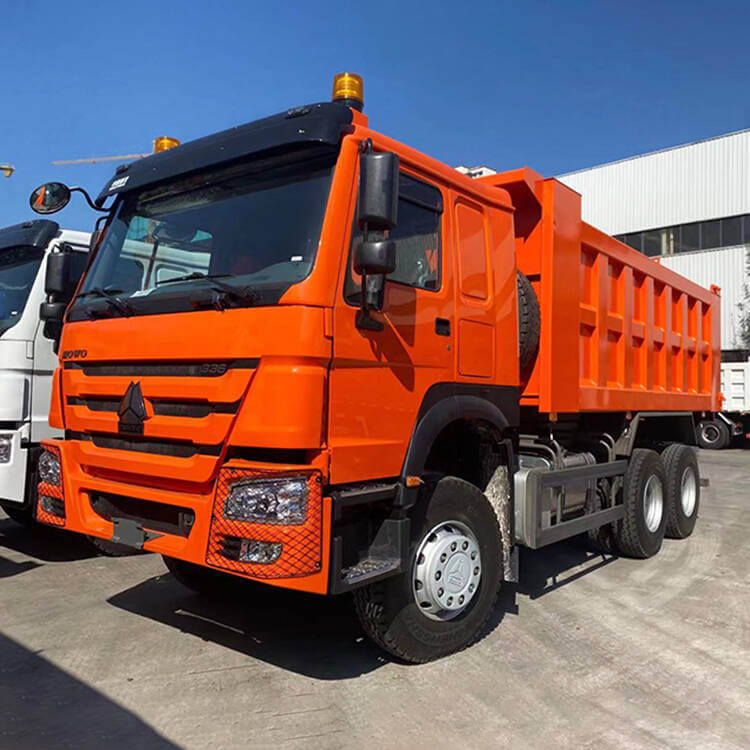

Howo 6x4 Dump Truck for Sale in Madagascar
Howo 6x4 Dump Truck for Sale in Madagascar
1. Chassis device: The chassis is solid and durable, with strong power, which can meet the needs of different working conditions.

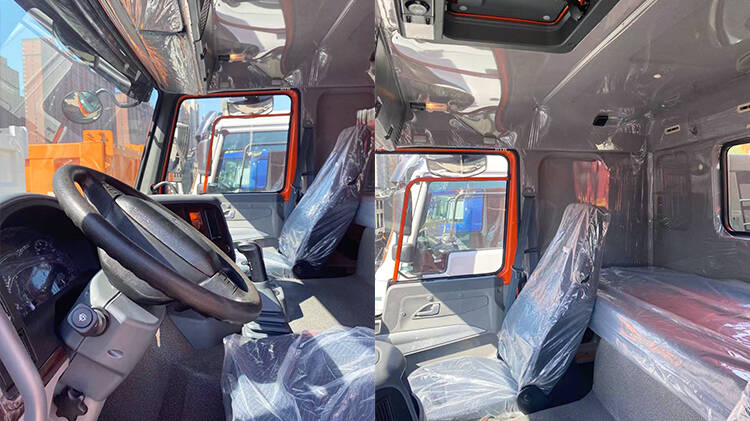

2. Comfortable driving environment: the driving noise is small, more comfortable and safe.
3. Excellent shock absorption system: Leaf springs are installed on the suspension of the chassis, and the leaf springs not only enhance the bearing capacity, but also enhance shock absorption.
4. In terms of vehicle braking: linear braking, short braking intervals, and safe driving.
ENGINE:
Engine model: WD615.47, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinder in-line with water
cooling, turbo-charging & inter cooling, mechanical high pressure oil pump system
Maximum output: 371PS (273kW) at 2000 rpm
Maximum torque: 1560Nm at 1200-1500rpm
Bore: 126mm
Stroke: 130mm
Displacement: 9.726L
CLUTCH: SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance
TRANSMISSION: Transmission, model HW19710, 10 forward and 2 reverse Ratio: 5.73
FRONT AXLE: New HF9 series, with drum brake system
REAR AXLE: HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.
STEERING: ZF8118, hydraulic steering with power assistance Ratio: 22.2-26.2:1
WHEELS&TYRES:
Rims: 8.5-20,10 hole-steel
Types: 13R22.5

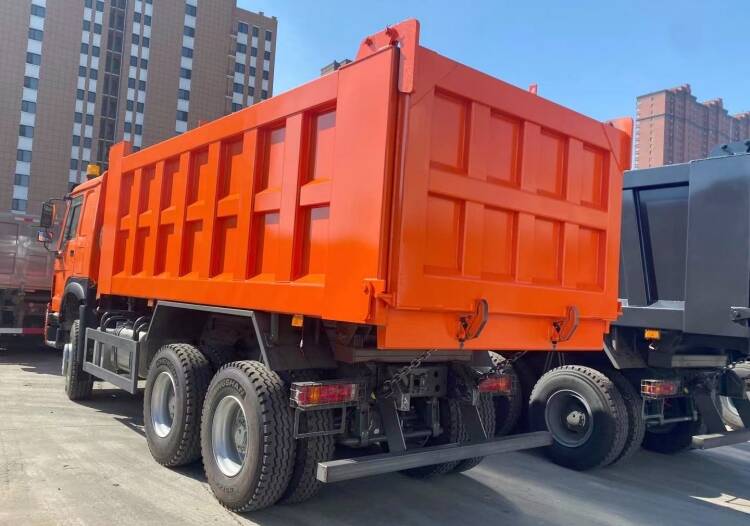

CARGO BODY: 5600*2300*1500, bottom 8mm, side 6mm, Middle lift system (Other sizes are optional)
