The design process of the 3 axle fence trailer for sale and the structure of the fence is combined with the category of goods to be delivered by the customer. The effective design scheme can fully reduce the weight of the carriage under the condition of load. The structure is simple and applicable, and the disassembly is convenient, so as to reduce the investment cost and create more profits for the user.
3 The side beams used in the axle fence trailer for sale and its overall structure is a through-type load-bearing beam group and a regional frame structure formed by electric welding. Such a structure can effectively balance the bending stiffness, flexibility, and compressive strength of the fence trailer, and it is not easy to deform.

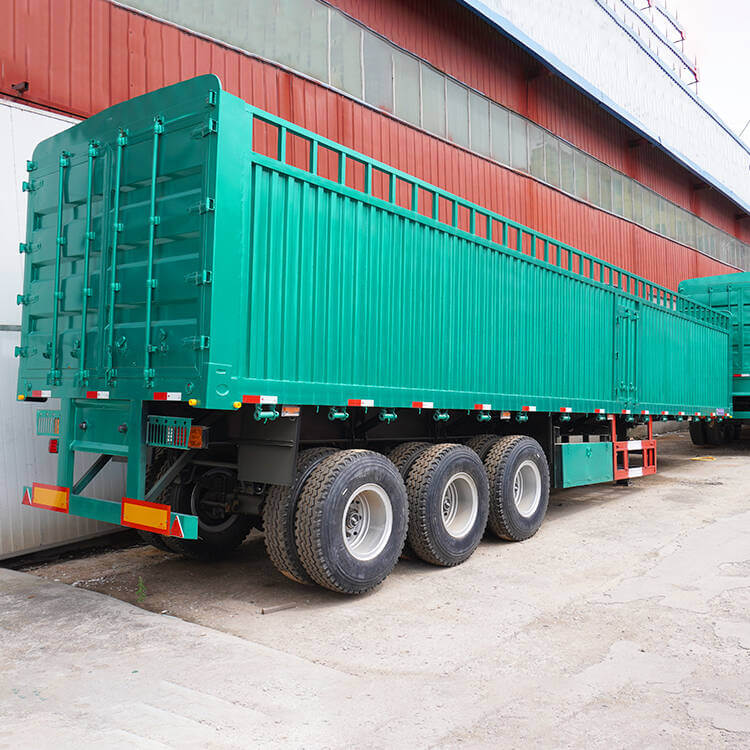

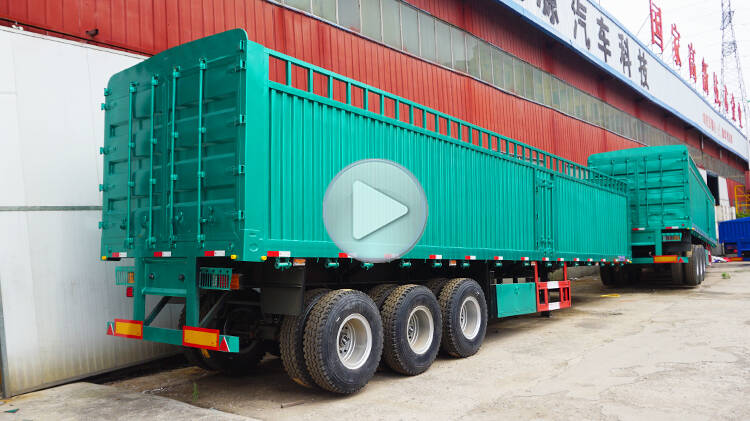

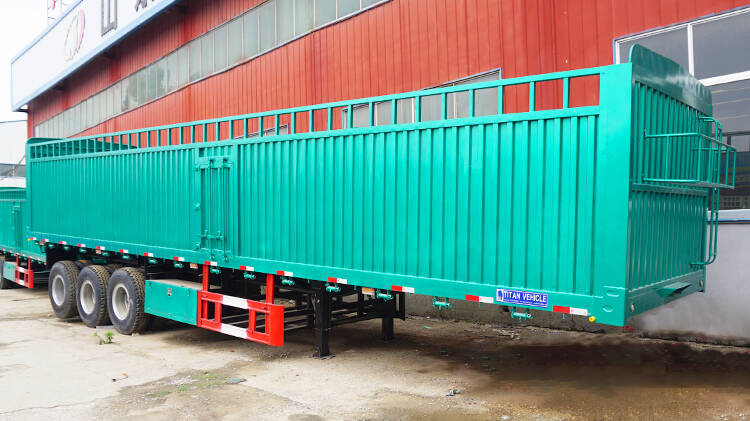

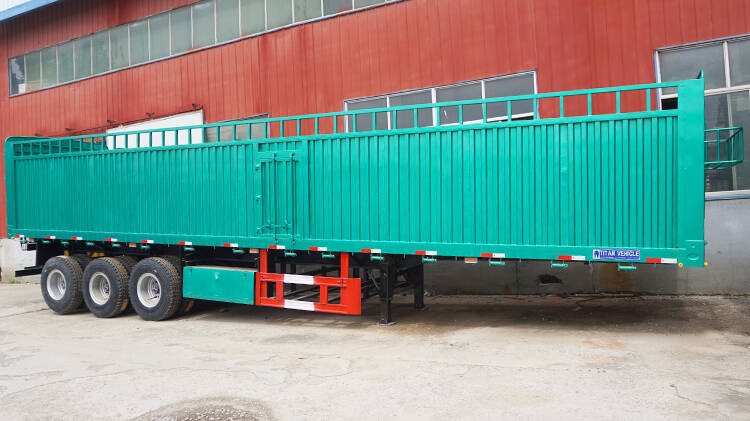

3 Axle Fence Trailer for Sale Price in Madagascar
3 Axle Fence Trailer for Sale Price in Madagascar
1. This 3 axle fence trailer's fence and vehicle structure and its craftsmanship all combine the customer's transportation needs of different types of goods to provide an effective design solution.
2. The fence trailer can fully reduce the weight of the carriage under load conditions. It has a simple structure and is easy to disassemble, which reduces investment costs for users and creates more profits.
3. Excellent performance and stable operation.
4. The fence trailer has undergone multiple painting processes, and will be sprayed with 1 layer of anti-corrosion primer and 2 layers of top coat for a total of 3 times of painting, which greatly increases the appearance color retention and corrosion resistance of the fence trailer body.
Dimension(mm): 13000x2600x3550mm
Trailer Sides: 2000mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,(FUWA/ BPW/ Huajing optional)
Tire: 12 units, 12.00R20
Rim: 9.00-22.5
Suspension: Mechanical suspension(Air suspension optional)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Standard 28tons(double-speed)
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve
ABS: Optional
Light: LED light
