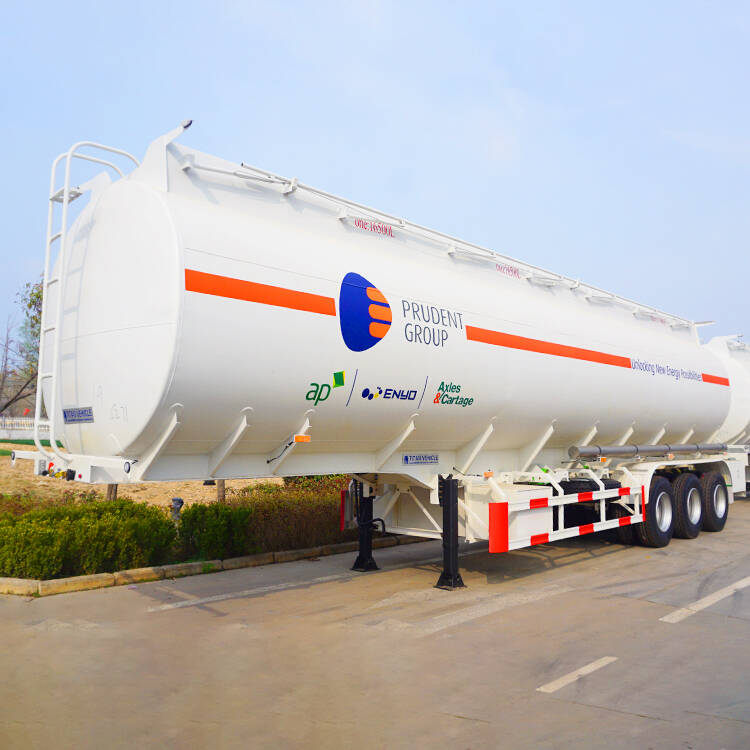

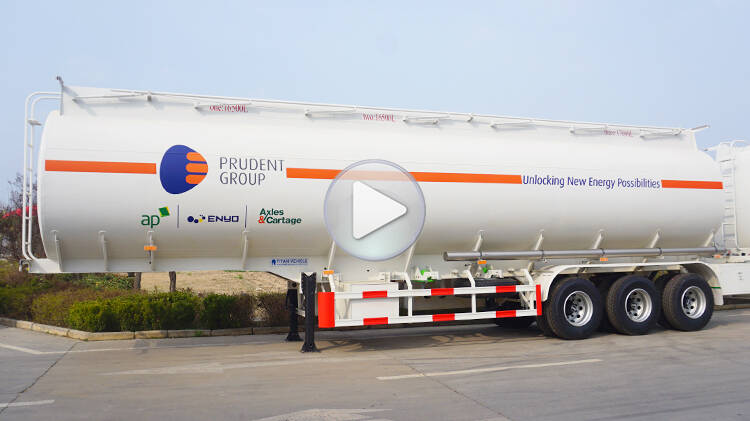

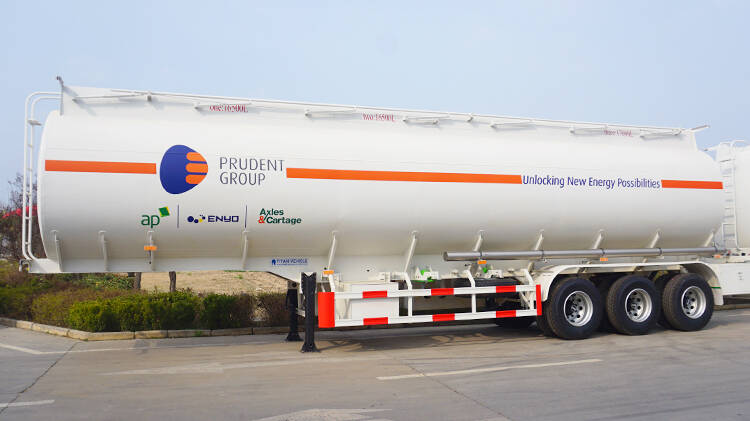

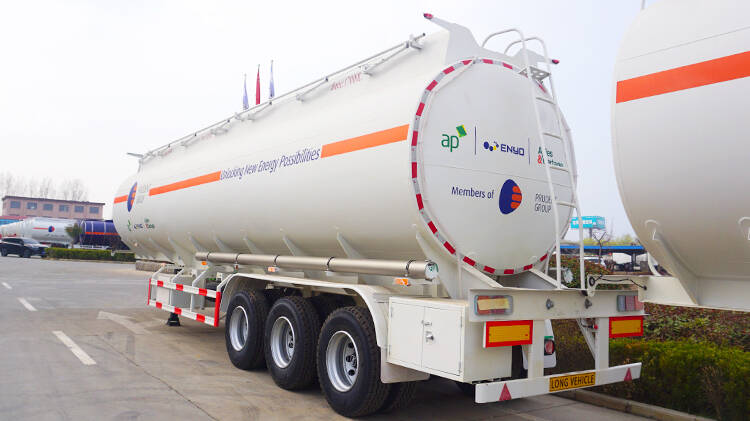

This 3 axle fuel tanker trailer is a semi-trailer used to transport liquids.
It has three compartment and its totally volume is 50000L.
It is mainly used for transporting many different kinds of liquids, such asdiesel, gasoline, edible oil and chemical liquids, etc.
Fuel Tanker Trailer Price | Fuel Tanker Semi Trailer for Sale in Madagascar
Fuel Tanker Trailer Price | Fuel Tanker Semi Trailer for Sale in Madagascar
Fuel Tanker Trailer Price | Fuel Tanker Semi Trailer for Sale in Madagascar
The liquid will generate huge tension and impact in the tank during transportation, so the tank of the fuel tanker trailer must be strong enough.
Our fuel tanker trailer is made of Q345 low-carbon alloy steel with a thickness of 5mm, and the tank body is very strong.
The most advanced longitudinal welding technology is adopted to reduce the number of weld seams of the tank body and greatly improve the overall firmness of the tank body. Increase the service life of 3 axle fuel tanker trailers.
Model: Fuel Tanker Trailer
Dimension: 11100mm*2500mm*3800mm (the exact size depends on the final design.)
Volume: 50000L
Compartment: 3
Tank Body Material: 5mm Stainless steel
End plate: 6mm Stainless steel
Manhole Cover: Stainless steel
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Discharging Valve: Diameter is 3 or 4 inch
Compartments: Optional
Axle: 3 axles, 13T

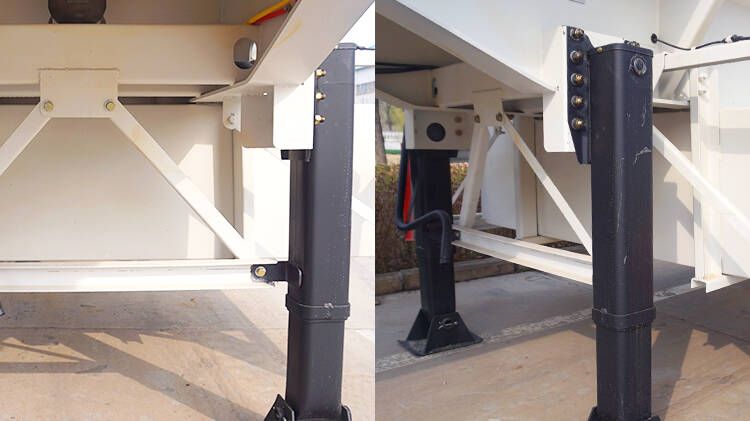

Landing Gear: JOST(D200T) or China brand 28T
Kingpin: 2.0 or 3.5 inch
Suspension: Mechanical suspension
Leaf Spring: 90(w)mm*13(thickness)*10 layers
Rim: 9.00-22.5
Tire: 12.00R22.5
