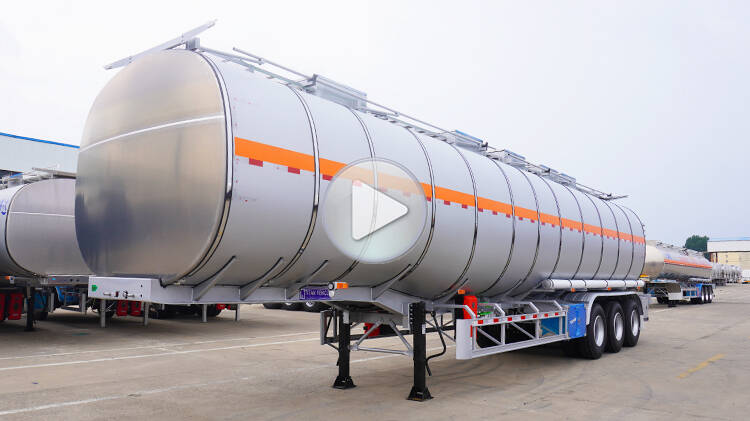

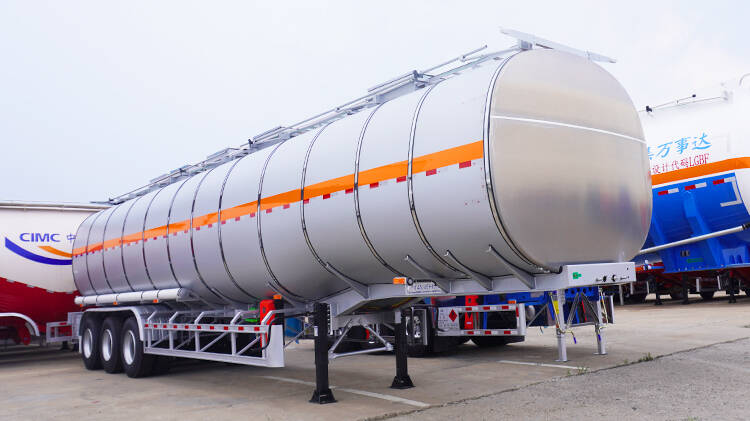

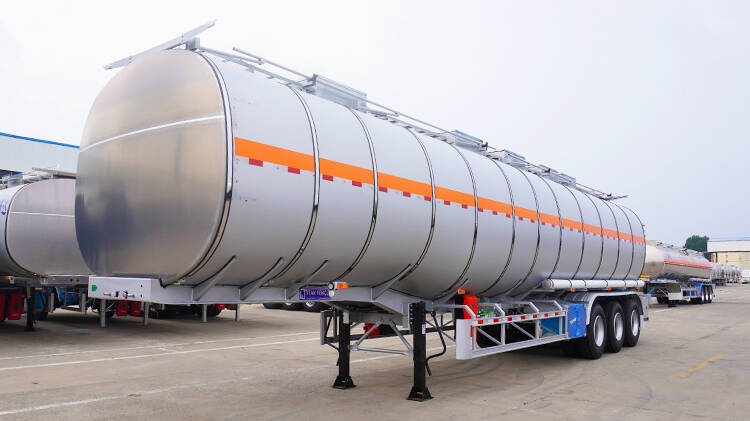

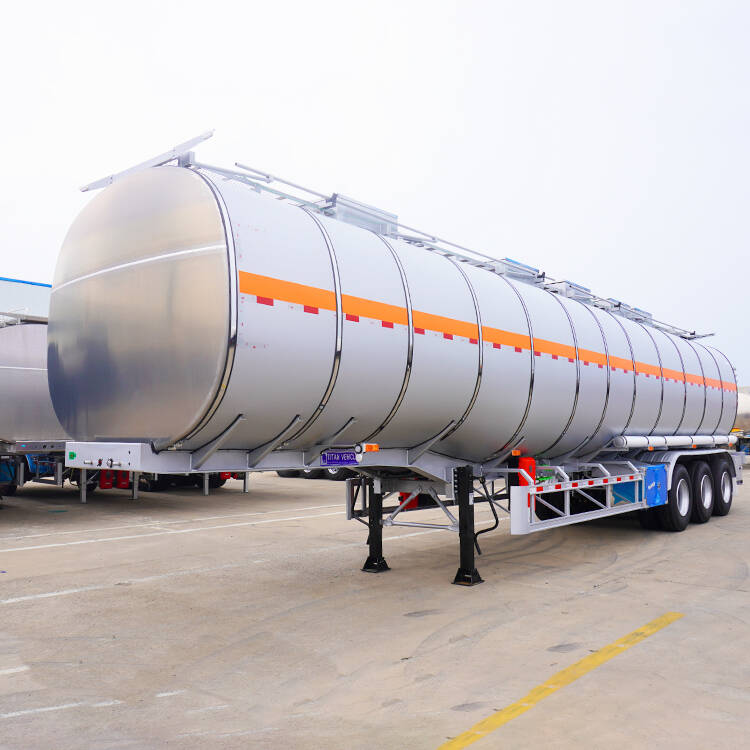

This is a stainless steel tanker trailer, using materials that can be used to transport edible liquids such as milk and other liquids. Additional fixings are added to the outside of the tank. The available capacity is 4000L, 45000L, 50000L. It can be used as sub-bins, and each sub-bin will be equipped with a corresponding discharge valve.
Petrol Tanker | Stainless Steel Tanker Trailer for Sale Price in Madagascar
Petrol Tanker | Stainless Steel Tanker Trailer for Sale Price in Madagascar
Petrol Tanker | Stainless Steel Tanker Trailer for Sale Price in Madagascar
1. The material used for the tank body is used to transport food-grade liquids.
2. Petrol tanker can be customized with different capacity tanks, which can be divided into bins, and each bin is equipped with a sea bottom valve.
3. The interior of the Stainless steel tanker will add multiple layers of thickened anti-wave plates to reduce the impact of the liquid on the tank during transportation. Increase the driving safety of fuel tanker trailer.
Dimension: 9730mmx2500mm x3400mm (the exact size depends on the final design.)
Total volume: 45000 liters
Tank body material: Stainless Steel
Discharging Valve: Diameter is 3 or 4 inch
Compartments: Single compartment
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each

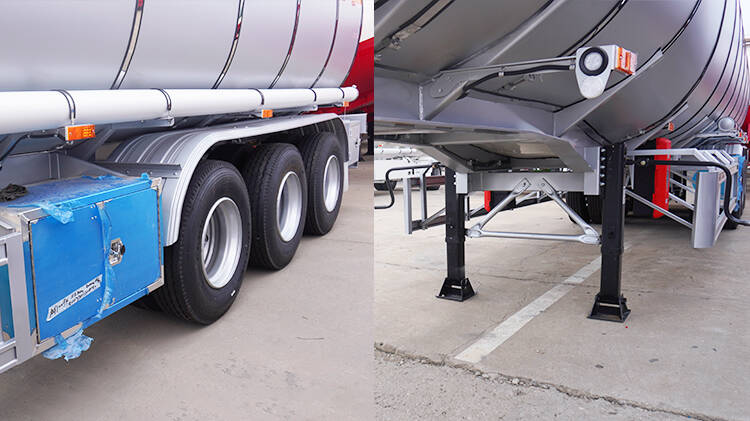

Axle: 3 axles,13T, TITAN brand
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch
Suspension: Mechanical suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber
Tire: 12.00R22.5
Accessories: One standard tool box
