The types of goods that can be transported by the side wall trailer are very rich. Large equipment, heavy goods and all kinds of bulk goods can be loaded, such as steel, wood, stone, grain and so on. Almost all goods within the load-bearing range can be loaded.

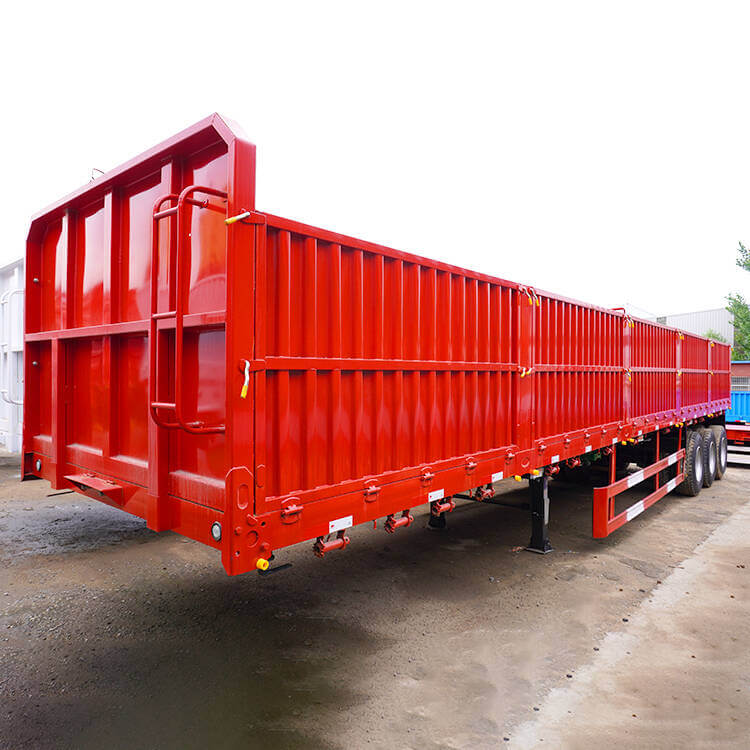

3 Axle Side Wall Trailer for Sale Price in Madagascar
3 Axle Side Wall Trailer for Sale Price in Madagascar
1. The body of the side wall trailer is made of high-quality steel, advanced technology and strict production process.
2. The side wall trailer for sale has a higher side wall, which can accommodate more goods, and at the same time, it can better protect the goods and avoid the loss of goods during the transportation of some bulk goods. .
3. The body structure of 3 axle side wall trailer is reasonable, more solid and reliable. The chassis structure has strong rigidity and strength, which can support more loads and reduce more impacts.
Dimension(mm): 12500mm*2500mm*2750mm(depends on final design)
Trailer Sides: 1200mm, or box type sides
Loading capacity(ton): ≤50T
Axles: 3 axles, 13T/16T
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension (Air suspension optional)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Standard 28tons
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve
Light: LED light
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
