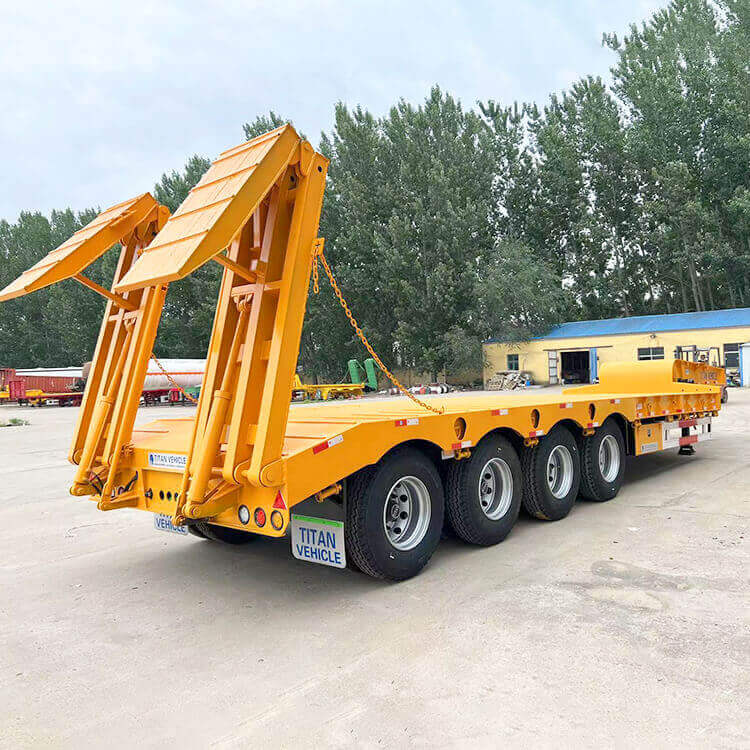

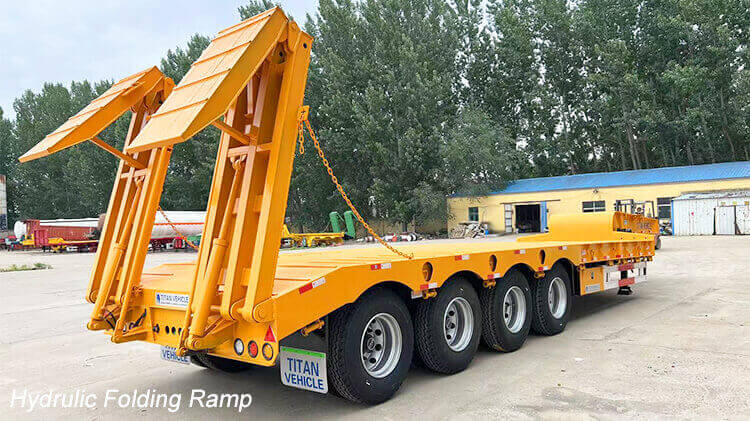

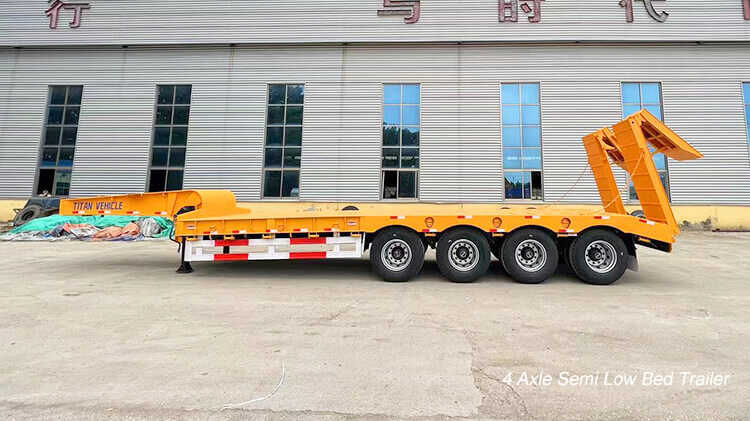

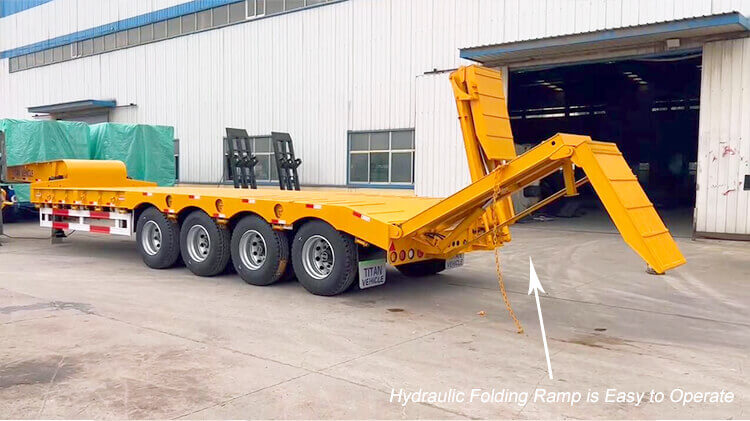

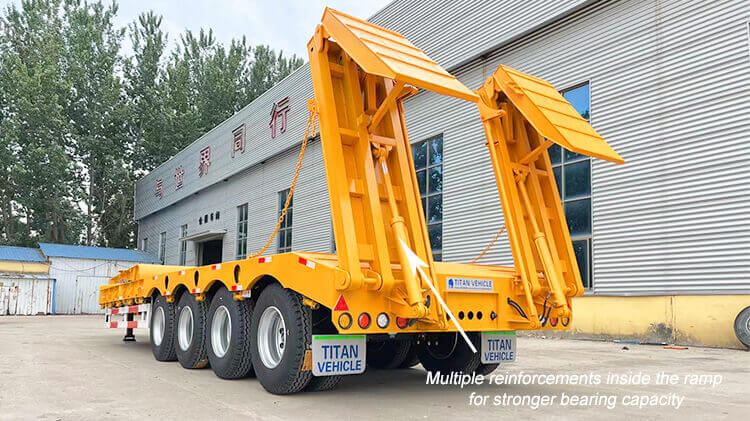

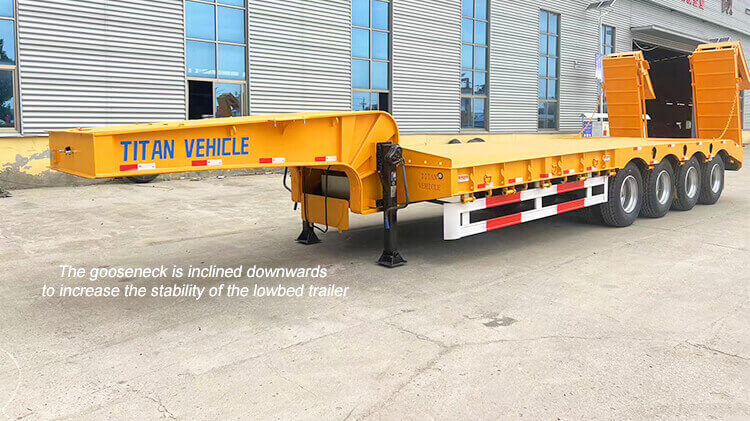

The 4 axle hydraulic lowbed trailer is composed of chassis, tires, frame, body and other parts. Its body is designed as a low platform, so that the items it transports can be loaded and unloaded more stably and safely.
The hydraulic lowbed trailer is a cargo-carrying tool, which is suitable for transporting large-scale machinery and equipment, construction materials, steel and other goods with a low height.
The platform of the hydraulic lowbed trailer for sale is wider, which can carry more cargo. At the same time, the body structure is relatively stable, so accidents such as rollover are less likely to occur during driving.
The hydraulic lowbed trailer in Madagascar uses a high-quality mechanical suspension system, which can effectively reduce body vibration and improve driving stability and comfort. At the same time, this model can also be equipped with air suspension as required.

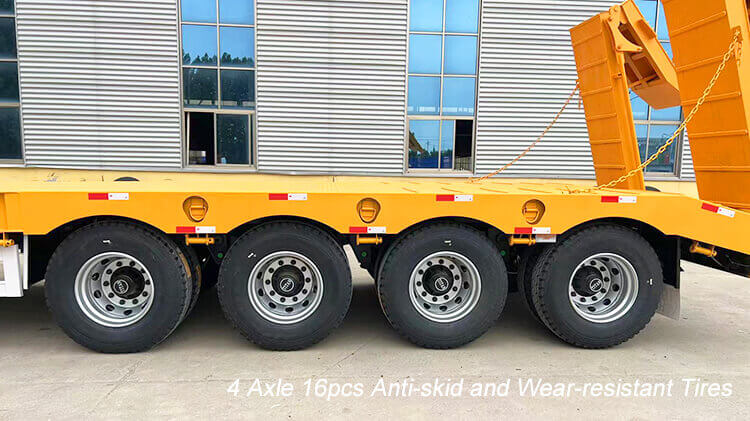

The tires of the hydraulic lowbed trailer with Faymonville adopt a large wide tire design, which can improve the bearing capacity and stability of the trailer, and can also reduce the damage of tire pressure to the road surface. In addition, the tires also have good anti-skid ability, which can improve the grip and driving stability of the vehicle.
The body structure of the 4 axle hydraulic lowbed trailer is made of high-strength steel, which has high load-bearing capacity and compression resistance, and can effectively reduce the weight of the body and improve the fuel economy of the vehicle.
The body of the 4 axle lowbed trailer for sale is low, which is convenient for loading, unloading and transportation of mechanical equipment and goods. It also has an anti-corrosion coating on the outside of the body, which can effectively prevent the body from rusting and corroding.
Model: 4 Axle Hydraulic Lowbed Trailer for Sale in Madagascar
Dimension: 13000*3000*1700mm（depends on final design）
Capacity: ≤100T
Axles: 4 axles, 13T axle ( with 16T braking pads )
Material: HG60 high strength steel（Q460C）
Tire: 12R22.5
Rim: 9.00-22.5
Suspension: Mechanical suspension (Air suspension optional)
Spring Leaf: 10pcs,16mm thick, 900mm wide
Platform: 5mm-thick checkered HSS plate
King Pin: JOST 2.0inch or 3.5inch
Landing Gear: Chinese Standard 28tons or JOST
If you are interested in this 4 axle hydraulic lowbed trailer for sale, welcome to leave your message!
We will provide more details, quotations, catalogs, drawings, and videos for you!
