The 3 axle low bed trailer has a strong load-bearing capacity, it can bear up to 80ton, and the body is made of high-strength steel. Its load-bearing capacity is stronger than other types of semi-trailers, and it is used to transport mechanical equipment or other goods of greater weight and size.
3 axle low bed trailer for sale has extremely high transport efficiency. It can easily cooperate with other transportation equipment, thus saving transportation time and cost, and improving transportation efficiency.
In addition, 80ton low bed trailer in Madagascar is suitable for long-distance, large-scale transportation at one time, and a large amount of goods can be loaded on one vehicle at one time, which improves the ability of rapid transportation, increases the flexibility of transportation, and shortens the transportation cycle.

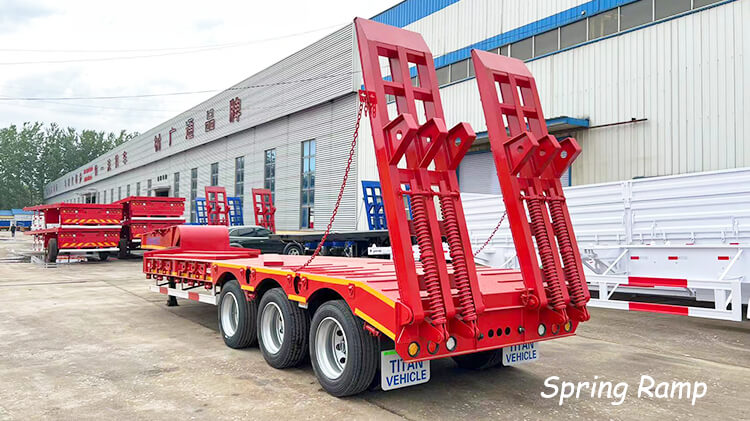

3 axle low bed trailer for sale Equipped with high-quality spring ramp, there are multiple reinforcements inside the spring ramp steel pipe, which increases the load-bearing capacity of the spring ramp, has a longer service life and is not easy to deform. Secondly, the spring ramp is very easy to operate, and one person can easily control the rise and fall of the ramp.

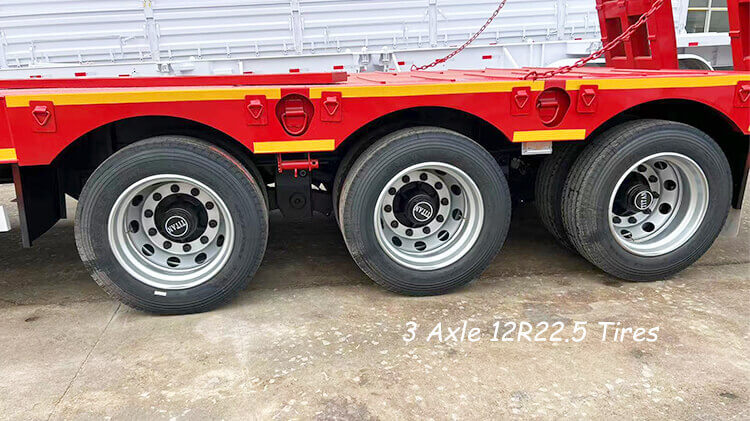

The tires used by the 3 axle 80ton low bed trailer come from factories that have cooperated with them for many years. There are very few after-sales problems and the quality is guaranteed. The tires have a long service life and reduce maintenance costs in the later period. At the same time, there are many types of tires, which can be selected according to the height requirements of the lowbed trailer.

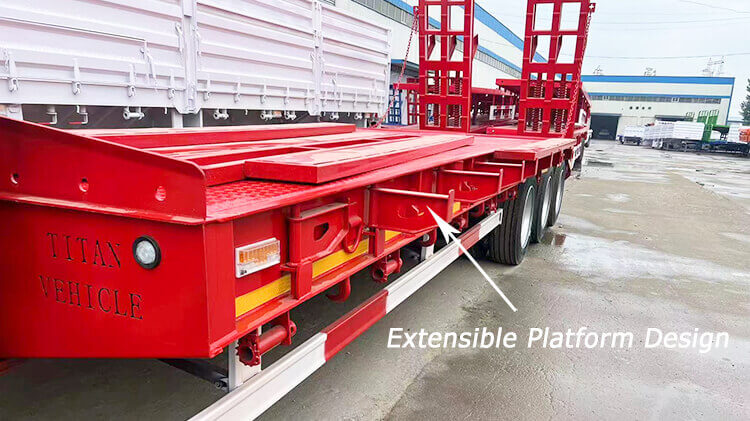

3 Axle lowbed trailer has a larger length and width of the cargo platform, which can carry more cargo, and has better safety and stability. In addition to customizing the height and size of the loading platform, we can additionally customize the platform’s extendable design, which can be more flexible for the transportation of goods of different sizes, and at the same time improve the road passability of the lowbed trailer.
Model: 3 axle 80ton low bed trailer for sale in Madagascar
Dimension: 13000*3000*1700mm(depends on final design)
Capacity: ≤80ton
Axles: 3 axles, 13T axle ( with 16T braking pads )
Material: HG60 high strength steel（Q460C）
Color: Optional
Landing Gear: Standard 28 ton or JOST
Kingpin: 2.0 inch or 3.5 inch JOST
Tire: 12R22.5
Rim: 9.00-22.5
Suspension: Mechanical suspension (Air suspension optional)
Spring Leaf: 10pcs,16mm thick, 900mm wide
Platform: 5mm-thick checkered HSS plate
Main Beam: Q460C steel, Upper plate:20mm, Middle plate:14mm, Bottom plate:20mm,, Height: 500mm
Side Beam: 300mm*140mm H-type(8/6/10mm)
If you are interested in this 3 axle 80ton low bed trailer for sale, welcome to leave your message!
We will provide more details, quotation, catalog, drawing, videos for you!
