This 4 axle semi lowbed trailer is a heavy-duty semi-trailer specially designed for transporting large machinery and cargo. Its load capacity can reach about 100 tons. Compared with traditional semi-trailers, it has many advantages and features.
The cargo platform of this lowbed trailer for sale is very close to the ground, so the height difference can be reduced when loading and unloading cargo, making loading and unloading of cargo more convenient and quicker.
Moreover, due to the low center of gravity of the vehicle body, the low bed semi trailer can run more stably and protect the safety of transported mechanical equipment or goods.

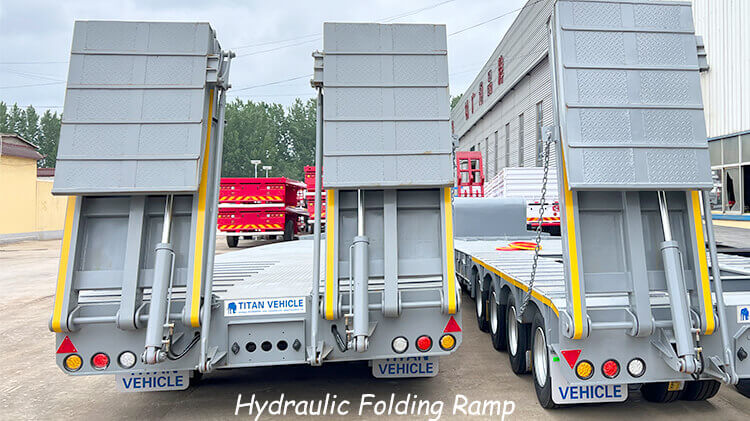

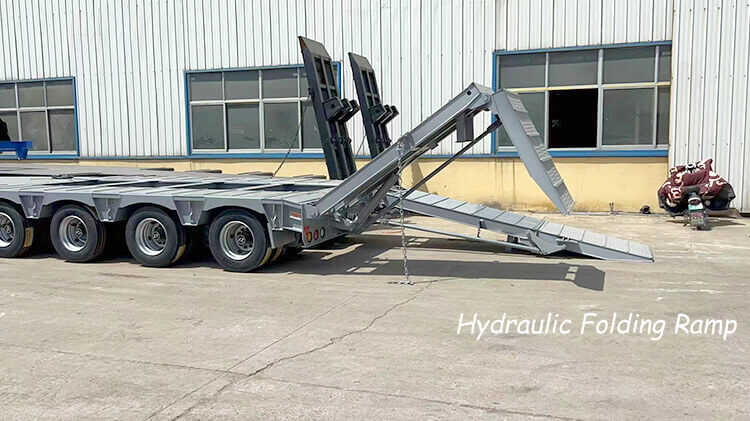

This semi lowbed trailer for sale has a hydraulic folding ramp, which can improve efficiency when loading and unloading goods, saving time and labor costs. The hydraulic folding ramp can be opened and folded quickly without manual operation, which reduces the labor intensity of workers and improves the loading and unloading efficiency.
This 4 axle semi lowbed trailer in Madagascar Hydraulic Folding ramp eliminates the need for lifting equipment or manual handling when transporting cargo. This means that the tractor does not need to use additional lifting equipment when transporting machinery and equipment, thereby saving costs.
Model: 4 axle semi low bed trailer with hydraulic folding ramp for sale in Madagascar
Dimension: 13000*3000*1700mm
Capacity: ≤100T
Axles: 4 axles, 13T axle ( with 16T braking pads )
Material: HG60 high strength steel（Q460C）
Tire: 12R22.5
Rim: 9.00-22.5
Suspension: Mechanical suspension (Air suspension optional)
Spring Leaf: 10pcs,16mm thick, 900mm wide
Platform: 5mm-thick checkered HSS plate
Main Beam: Q460C steel, Upper plate:20mm, Middle plate:14mm, Bottom plate:20mm,, Height: 500mm
Side Beam: 300mm*140mm H-type(8/6/10mm)
King Pin: JOST 2.0inch or 3.5inch
Landing Gear: Chinese Standard 28tons or JOST
If you are interested in this 4 axle semi low bed trailer with a hydraulic folding ramp, welcome to leave your message!
We will provide you more details, quotations, catalogs, drawings, and videos!
