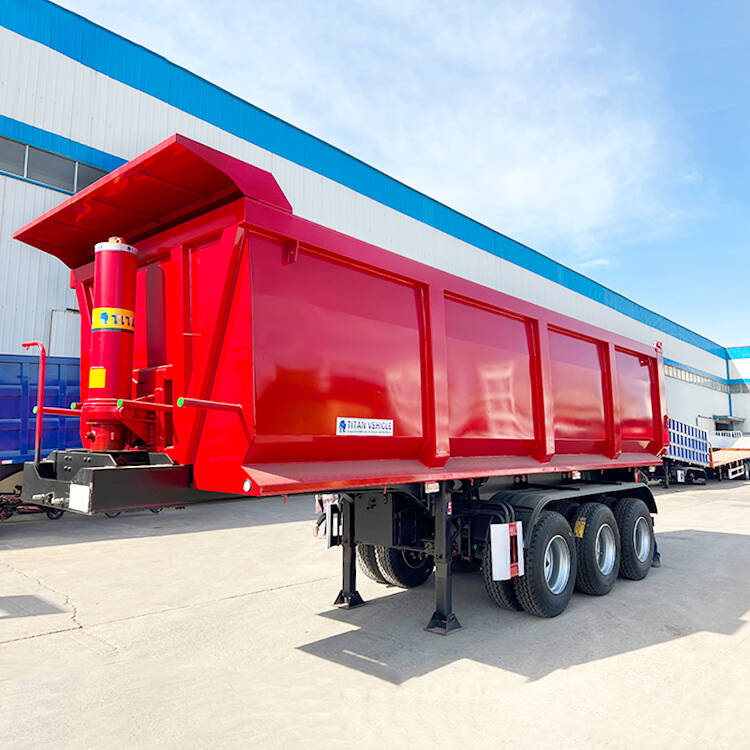

3 Axle Dump Trailer
3 Axle Dump Trailer

3 Axle Dump Trailer

17000 USD

This 3 axle dump trailer for sale is suitable for the transportation of coal, ore, construction materials and other bulk and scattered goods.

SKU: TITAN8808001
MPN: TITAN8808001
Brand: TITAN

Description of Dump Trailer

3 Axle dump trailers are very common in current road transportation, and are mainly used for the transportation of building materials, coal, ore and other bulk and scattered goods. This dump trailer adopts the method of turning over and dumping, which can improve the transportation efficiency of bulk and scattered goods.

3 Axle Dump Trailer for Sale Manufactures in Madagascar

3 Axle Dump Trailer for Sale Manufactures in Madagascar

3 Axle Dump Trailer for Sale Manufactures in Madagascar

3 Axle Dump Trailer for Sale Manufactures in Madagascar

3 Axle Dump Trailer for Sale Manufactures in Madagascar



Advantages of Dump Trailer

1. 3 The axle dump trailer frame is a frame structure composed of welded steel longitudinal beams and reinforced beams. The strength, rigidity, and toughness of the frame are considered in a balanced manner, and it has the characteristics of strong bearing capacity and no permanent deformation.

2. The axle of dump trailer for sale is made of high-quality axle produced by the manufacturer, which has strong bearing capacity and is not easy to deform.

3. The dump trailer adopts a unique new suspension system with high strength and strong impact resistance.

4. The load of each axle of the dump trailer is balanced, and the angle design of the system tie rod is reasonable. During the frequent bumpy operation, the instantaneous friction slip distance between the tire and the ground is reduced, and the tire wear is effectively reduced.



Specification of Dump Trailer

Inside dimension: 11280mmx2495mm x3970mm ( depends on final design)

Tare Weight (semi trailer): About 15600kg

Total volume(m³): 30-40m³ or less than 100tons

Side wall thickness: 4 - 6mm

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA, BPW etc.

Rim: 8.0-20 or 9.00-20

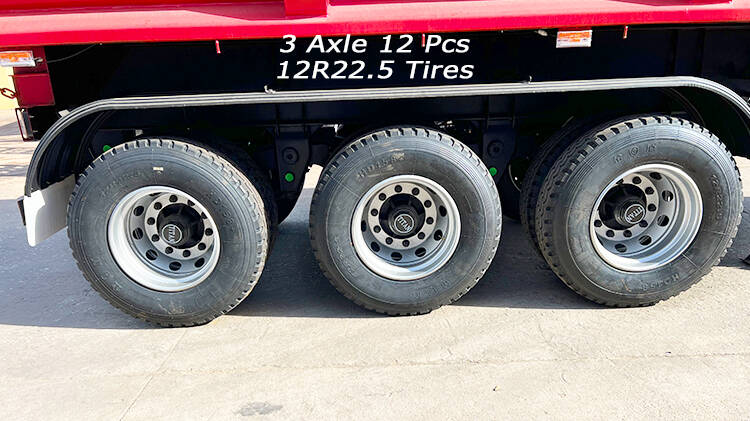

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: Standard 28ton or JOST brand

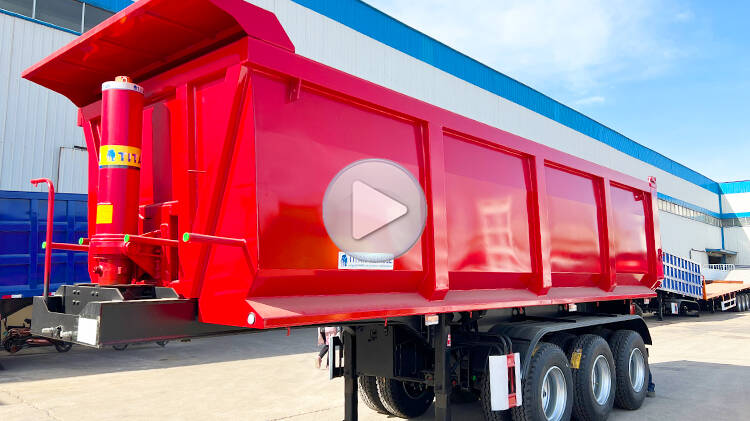

Video of Dump Trailer

3 Axle Dump Trailer for Sale Manufactures in Madagascar



If you are interested in this 3 axle dump trailer, welcome to leave your message!

We will provide more details, quotation, catalog, drawing, videos for you!
