3 axle tipper trailer is a commonly used special vehicle for transportation. Since the loading compartment can automatically tip over to unload at a certain angle, it greatly saves unloading time and labor, shortens the transportation cycle, improves production efficiency, and reduces transportation costs. It has become very popular in recent years.
3 axle tipper trailer is suitable for the transportation of bulk and scattered goods such as coal, ore, and building materials. The rear tipper can be divided into two categories according to the purpose: one is the heavy and super heavy dump trailer for off-road transportation, which is mainly responsible for the transportation tasks of large mines and engineering, and is usually used in conjunction with excavators. Another type of light and medium-sized ordinary dump trailer for road transportation is mainly responsible for the transportation of loose goods such as sand, soil, and coal, and is usually used in conjunction with a loader.

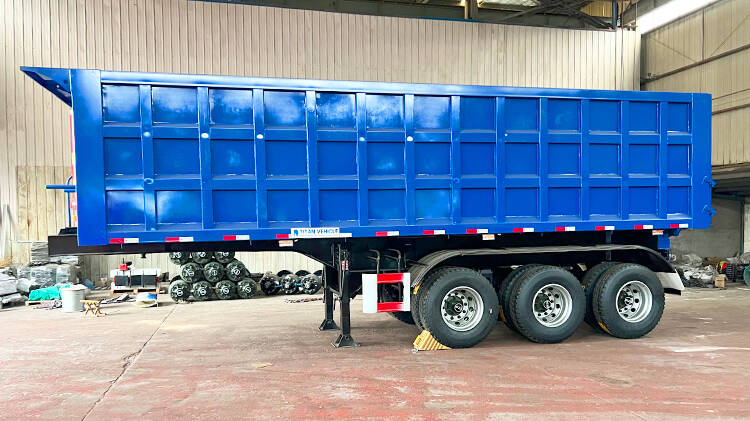

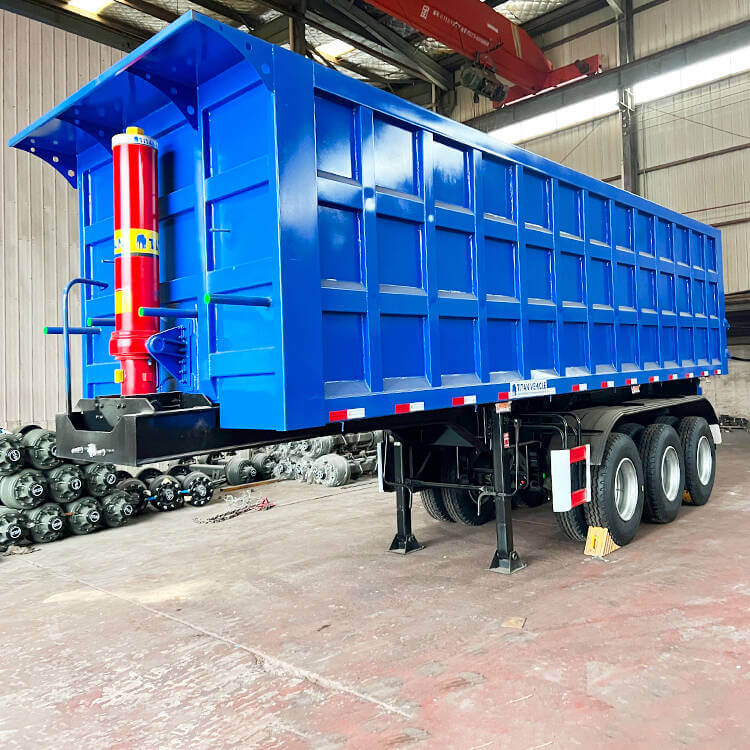

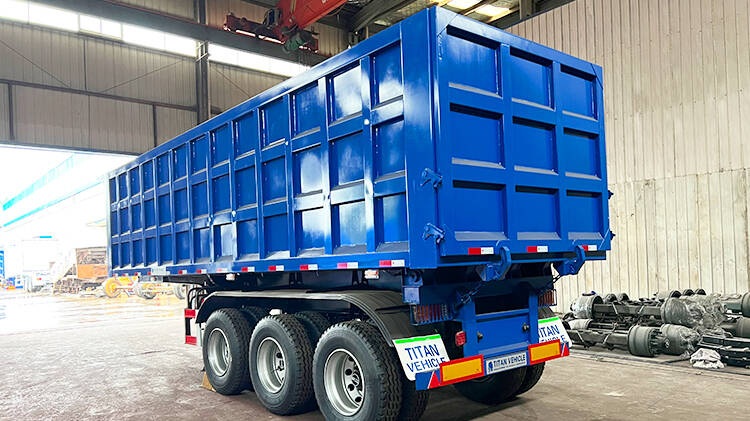

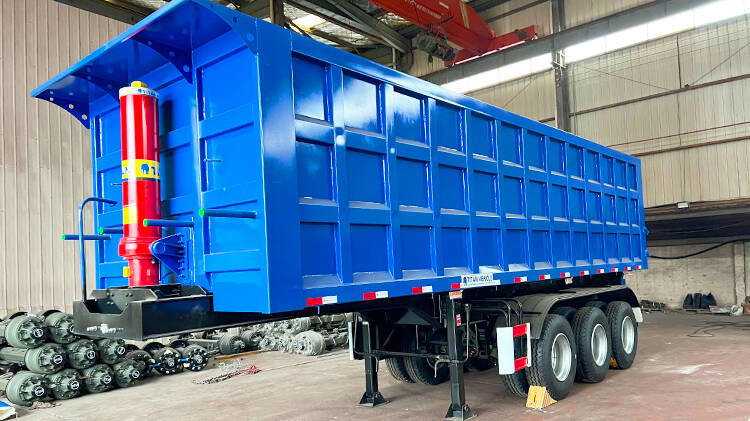

Tri Axle Tipper Trailer for Sale in Madagascar
Tri Axle Tipper Trailer for Sale in Madagascar
1. This tipper trailer adopts a rear-turning dump truck compartment, which can effectively improve the transportation efficiency of the handling machine for transporting bulk and scattered goods.
2. This tipper trailer for sale has a low center of gravity, so it is not easy to overturn when unloading.
3. The body structure design of 3 axle tipper trailer is reasonable, and the weight of the vehicle can be reduced under the premise of being in the middle, reducing fuel consumption and tire wear, and reducing costs.
4. The main components of the tip trailer for sale are processed by advanced equipment, with reliable quality and longer service life.
Inside dimension: 11280mmx2495mm x3970mm ( depends on final design)
Tare Weight (semi trailer): About 15600kg
Total volume(m³): 30-40m³ or less than 100tons
Side wall thickness: 4 - 6mm
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA, BPW etc.
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: Standard 28ton or JOST brand
If you are interested in this tri axle tipper trailer, welcome to leave your message!
We will provide more details, quotation, catalog, drawing, videos for you!
