Reliable and versatile, this 3 axle tip trailer has become the go-to model for medium and long distance vehicles. It is mainly suitable for the medium and long-distance transportation of medium-heavy and bulk goods, and the applicability of the goods transported is strong.
This 3 axle tip trailer for sale is suitable for the transportation of coal, ore, construction materials and other bulk and loose goods.
This 3 axle tip trailer body is made of high-quality steel, advanced technology, and strict production process. The vehicle has reasonable structure, reliable performance, easy operation and beautiful appearance.

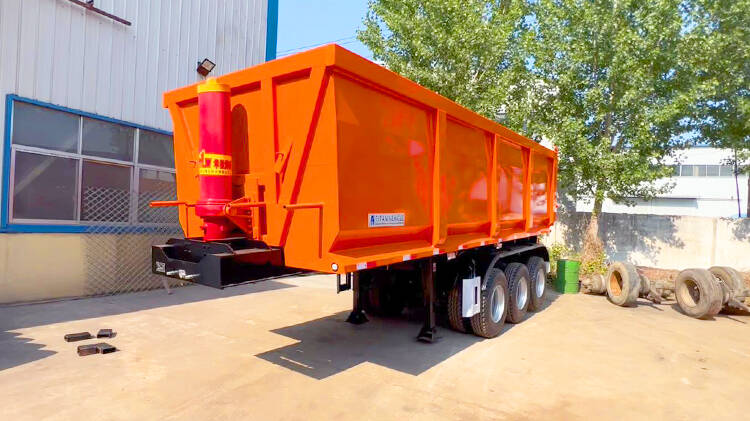

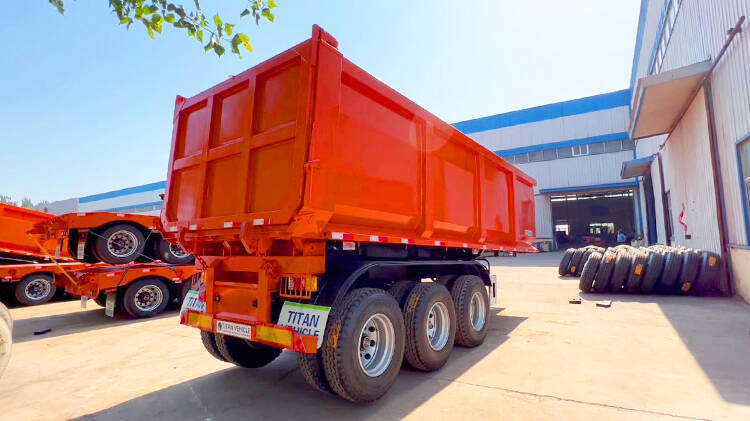

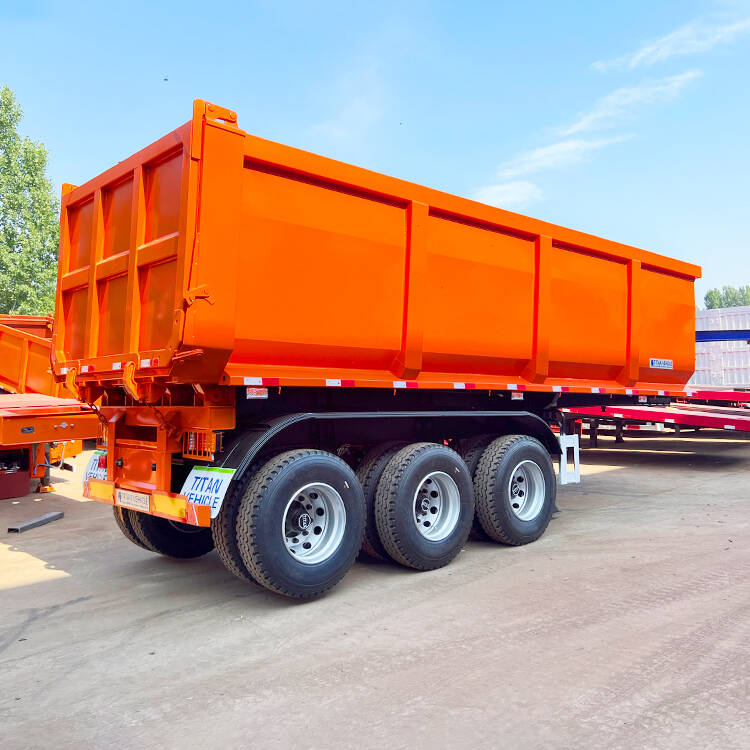

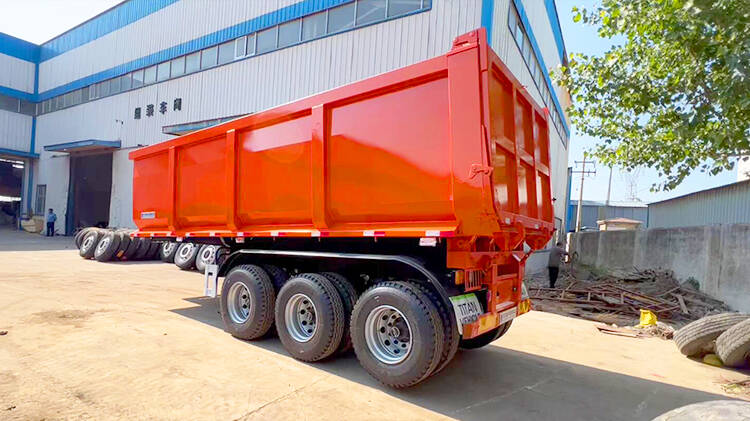

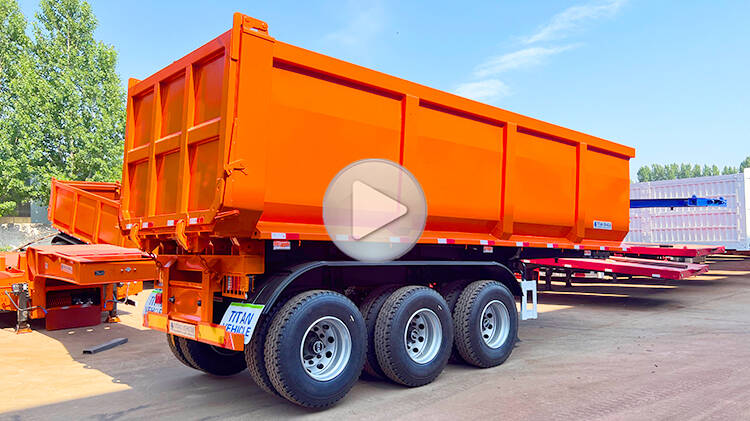

3 Axle Tip Trailer for Sale in Madagascar
3 Axle Tip Trailer for Sale in Madagascar
1. This heavy duty tip trailer is mainly suitable for medium and long-distance transportation of medium-heavy and bulk cargo, and the cargo it transports has strong applicability. The whole vehicle is optimized and designed with advanced computer-aided design software, and the finite element analysis of the frame is carried out according to the load-bearing quality of the vehicle to make the structural design more reasonable.
2. The load balance of each axis of the tip trailer and the reasonable design of the angle of the system tie rod greatly reduce the instantaneous friction slip distance between the tire and the ground, effectively reducing tire wear.
3. 3 axle tip trailer suspension adopts non-independent steel stamping type rigid suspension (air suspension is optional), which is composed of serial leaf springs and suspension supports, with reasonable structure, strong rigidity and strength, and is used to support loads To cushion the impact.
4. The axle of the tip trailer for sale is made of high-quality axle, which has strong load bearing and strong stability, and can adapt to various road conditions.
Inside dimension: 11280mmx2495mm x3970mm ( depends on final design)
Tare Weight (semi trailer): About 15600kg
Total volume(m³): 30-40m³ or less than 100tons
Side wall thickness: 4 - 6mm
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA, BPW etc.
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: Standard 28ton or JOST brand
If you are interested in this 3 axle tip trailer for sale, welcome to leave your message!
We will provide more details, quotation, catalog, drawing, videos for you!
