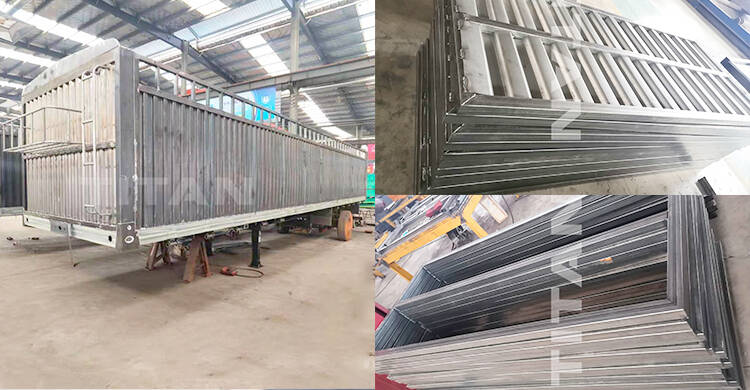

The design structure and craftsmanship of the fence and vehicle of the 3 axle livestock trailer are all combined with the user's transportation type to carry out a relatively scientific and reasonable design. It can be satisfied that the weight of the carriage can be reduced under the condition of carrying out load bearing. The structure of motor vehicles is also relatively simple and practical, and it is relatively convenient to disassemble, which can reduce the cost of investment for car owners.

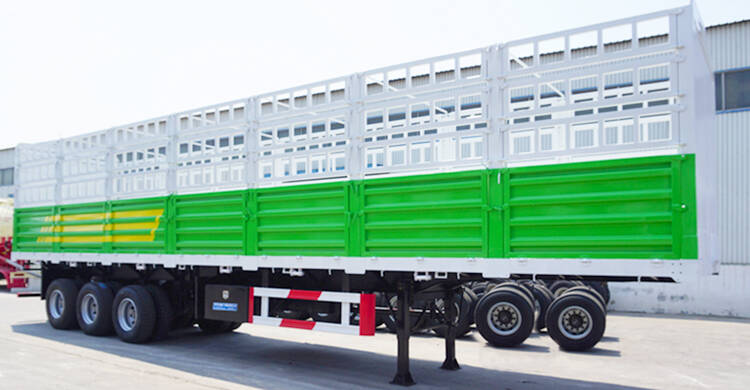

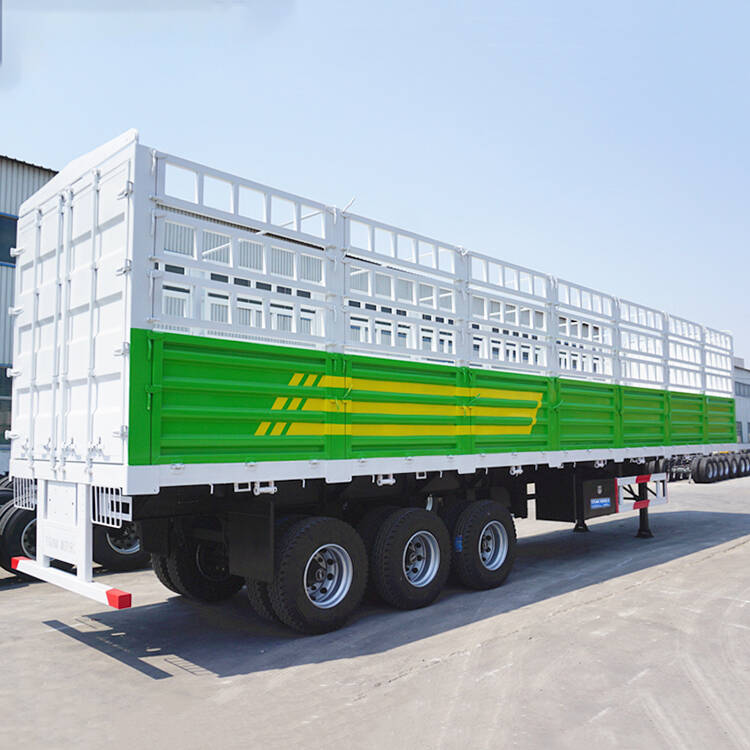

3 Axle Livestock Trailer for Sale in Madagascar
3 Axle Livestock Trailer for Sale in Madagascar
1. The 3 axle livestock trailer has a large container volume and can transport more cargo.
2. The 3 axle livestock trailer can transport a wide variety of goods with a higher degree of freedom.
3. The trailer whose axle is placed behind the center of gravity of the vehicle has high stability and high speed during operation.
Dimension(mm): 13000x2600x3550mm
Trailer Sides: 2000mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,(FUWA/ BPW/ Huajing optional)
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension(Air suspension optional)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Standard 28tons(double-speed)
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve
ABS: Optional
Light: LED light
Voltage: 24V
