40ft 3 axle lowbed truck for sale in Madagascar has a stable structure and high bearing capacity, making it the first choice for transporting various large machinery and equipment.

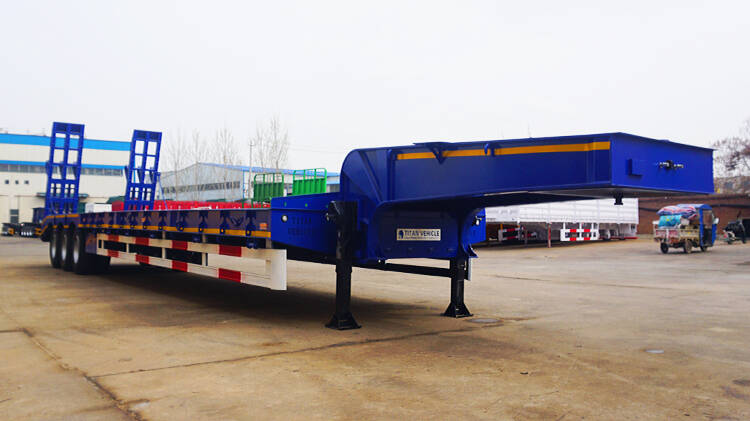

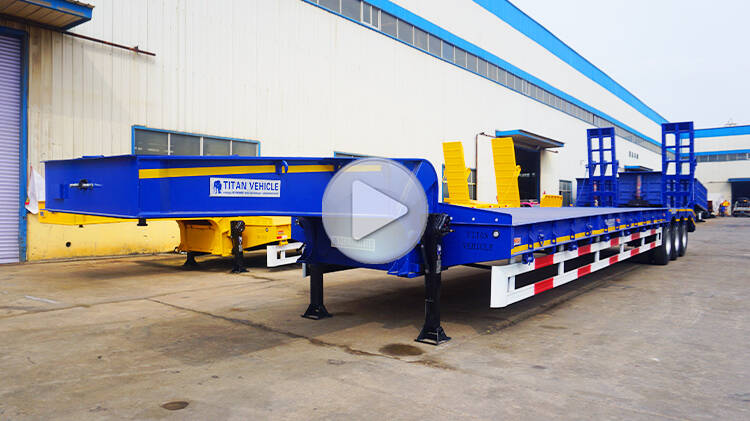

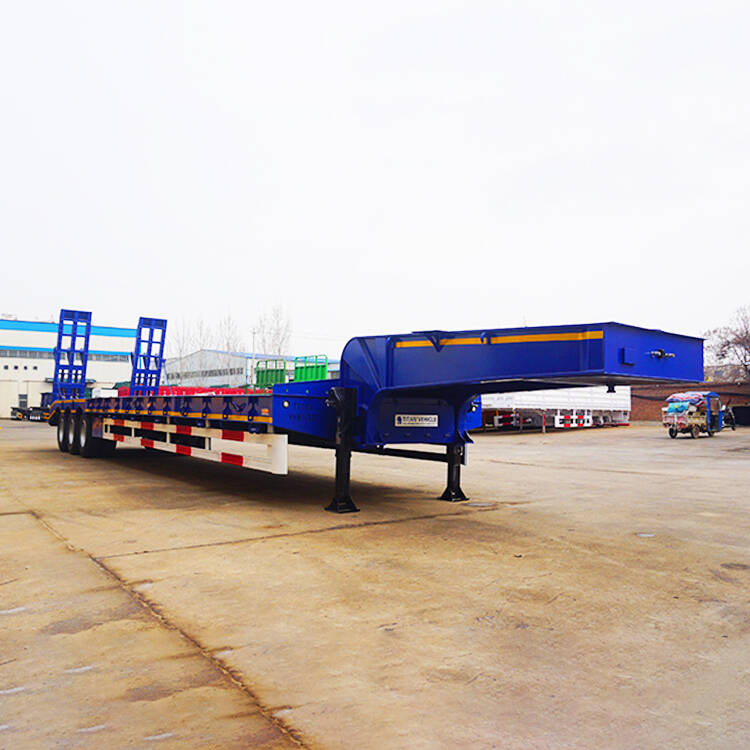

40ft 3 Axle Lowbed Truck for Sale in Madagasgar
40ft 3 Axle Lowbed Truck for Sale in Madagasgar
40ft 3 Axle Lowbed Truck for Sale in Madagasgar
1. 3 axle lowbed trucks have good stability, high safety and strong carrying capacity.
2. The gooseneck is designed not to be horizontal, but to be inclined downward. The angle of inclination is the most stable scientific angle obtained after many tests.
3. The side beam of the lowbed truck is widened to 300m high, which can share more weight for the platform during the transportation of heavy machinery, and is not easy to deform, and is suitable for various road conditions.
Dimension: 13000*3000*1700mm
Capacity: 100T
Axles: 3 axles, 13T axle ( with 16T braking pads )
Material: HG60 high strength steel（Q460C）
Tire: 12R22.5
Rim: 9.00-22.5

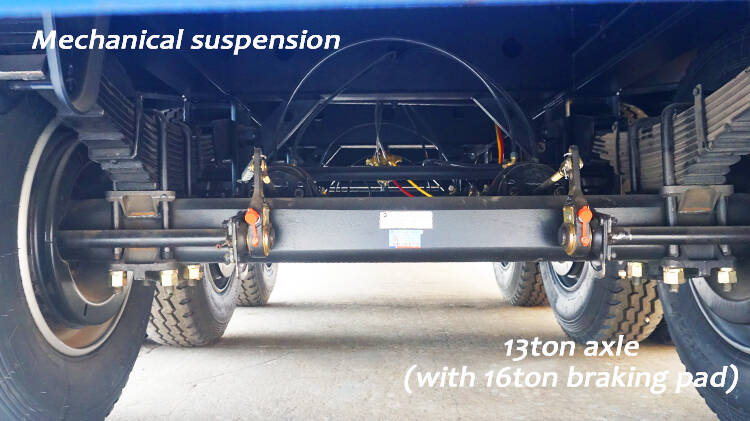

Suspension: Mechanical suspension (Air suspension optional)
Platform: 5mm-thick checkered HSS plate
Main Beam: Q460C steel, Upper plate:20mm, Middle plate:14mm, Bottom plate:20mm,, Height: 500mm
Side Beam: 300mm*140mm H-type(8/6/10mm)
